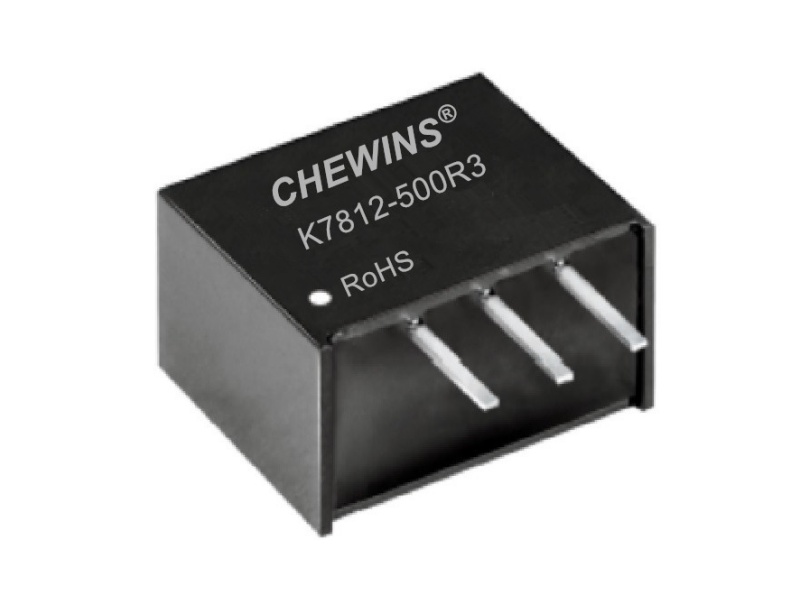

K78xx-500R3 DCDC非隔离电源

数据下载Selection Guide Certification Part No.Input Voltage(VDC) *OutputFull LoadEfficiency(%)Typ.Vin Min./Vin Max.CapacitiveLoad(µF)Max.Nominal(Range)Voltage(VDC)Current(mA)K7803-500R324(4.75-36)3.350086/80680 K7805-500R324(6.5-36)5.050090/8468012(7-31)-5.0-30080/81330K7809-500R324(12-36)950093/90680 K7812-500R324(15-36)1250094/9168012(8-24)-12-15084/85330 K7815-500R324(19-36)1550095/9368012(8-21)-15-15085/87330Note:*For input voltages exceeding 30VDC, an input capacitor of 22µF/50V is required.

Inquiry

E-mail：sales@chewins.net

Detailed Description

数据下载

Selection Guide
Certification	Part No.	Input Voltage(VDC) *	Output		Full Load Efficiency(%)Typ. Vin Min./Vin Max.	Capacitive Load(µF) Max.
Certification	Part No.	Nominal (Range)	Voltage (VDC)	Current (mA)	Full Load Efficiency(%)Typ. Vin Min./Vin Max.	Capacitive Load(µF) Max.
	K7803-500R3	24 (4.75-36)	3.3	500	86/80	680
	K7805-500R3	24 (6.5-36)	5.0	500	90/84	680
	K7805-500R3	12 (7-31)	-5.0	-300	80/81	330
	K7809-500R3	24 (12-36)	9	500	93/90	680
	K7812-500R3	24 (15-36)	12	500	94/91	680
	K7812-500R3	12 (8-24)	-12	-150	84/85	330
	K7815-500R3	24 (19-36)	15	500	95/93	680
	K7815-500R3	12 (8-21)	-15	-150	85/87	330
Note:*For input voltages exceeding 30VDC, an input capacitor of 22µF/50V is required.
